Why Choose Alfa Therm Rotary Kiln Incinerators?
Designed for complex waste streams, Alfa Therm Rotary Kiln Incinerators provide a reliable solution for facilities requiring continuous, high-capacity thermal treatment. Every system is engineered to maximise combustion efficiency while reducing emissions, fuel consumption, and maintenance requirements
Key Advantages
- Capacity Range: 250 kg/hr – 5,000 kg/hr
- Continuous Waste Processing
- 24x7 plant availability
- Handles Solid, Liquid, Sludge & Semi-Solid Waste
- Heavy-Duty Rotary Kiln Construction
- Advanced Secondary Combustion Chamber
- Integrated Air Pollution Control System (100% CPCB & EU compliant)
- PLC & SCADA Automation
- Hydraulic Waste Feeding System
- Automatic Ash Removal
Engineered for Continuous Thermal Treatment

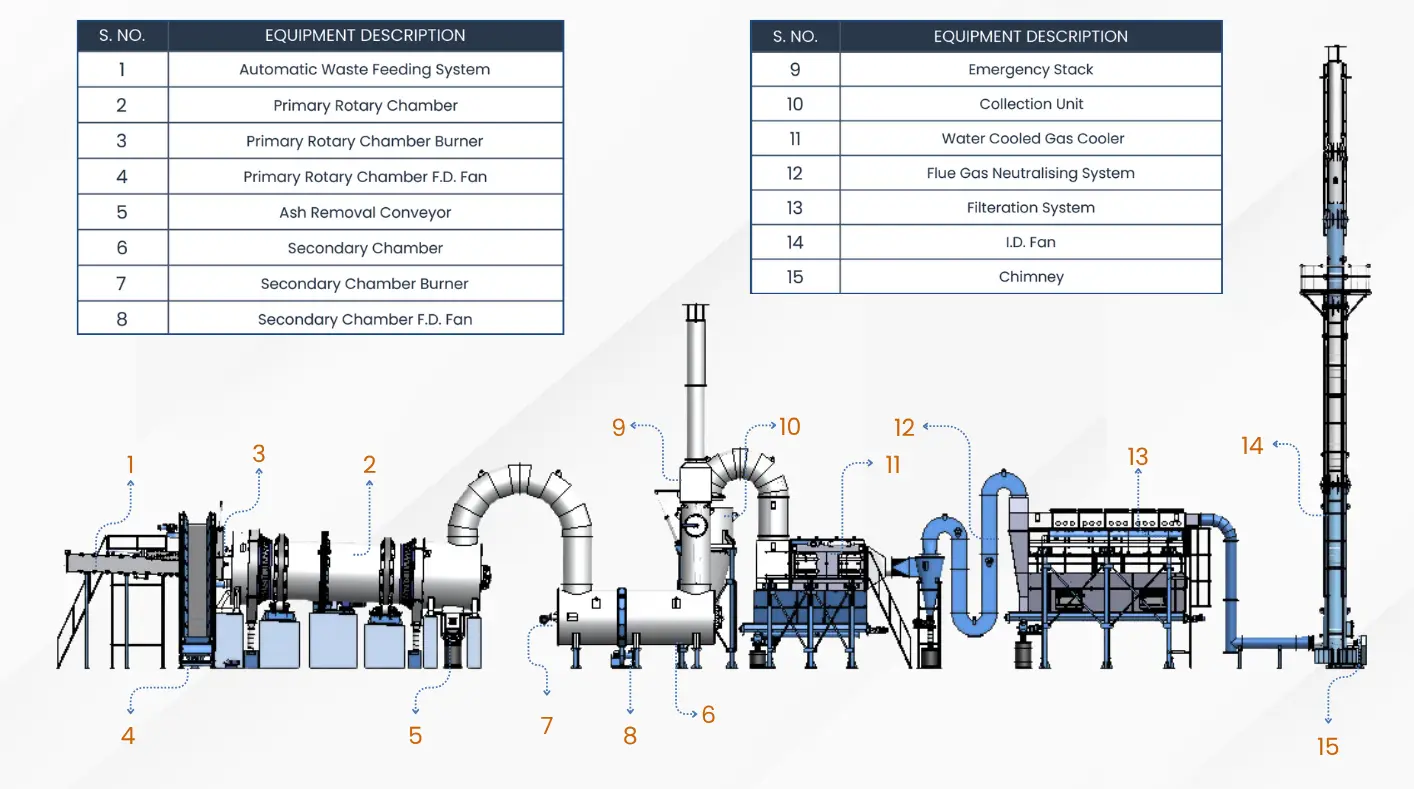

Unlike conventional batch-operated incinerators, Rotary Kiln technology provides continuous waste movement through a slowly rotating, refractory-lined cylindrical kiln. The controlled rotation continuously exposes fresh waste surfaces to combustion air, ensuring uniform heat distribution, efficient burnout, and stable combustion throughout the process.
The kiln operates at a controlled inclination, allowing waste to gradually progress through different thermal zones while maintaining the required residence time for complete combustion. Volatile gases generated during primary combustion are directed to a high-temperature secondary combustion chamber, where complete oxidation takes place before entering the Air Pollution Control System.
This integrated design enables the efficient destruction of hazardous and heterogeneous waste streams while maintaining stable operating conditions and reducing unburnt residues.
Engineering Features
Optimized Kiln Rotation
Controlled rotational speed and kiln inclination ensure uniform waste movement, improved combustion efficiency, and consistent thermal performance throughout the treatment process.
Secondary Combustion Chamber
Designed to ensure complete oxidation of combustible gases, the secondary chamber improves destruction efficiency while significantly reducing carbon monoxide and unburnt hydrocarbons.
PLC & SCADA Automation
Intelligent automation provides real-time monitoring of burner performance, combustion temperatures, kiln rotation, draft pressure, alarms, and safety interlocks for efficient and reliable plant operation.
Key Technical Benefits
- Continuous Operation for High Throughput
- Excellent Combustion Efficiency
- Uniform Waste Mixing
- Reduced Residual Carbon
- High Thermal Efficiency
- Lower Fuel Consumption
- Handles Multiple Waste Streams
- Stable Process Control
- Reduced Operator Intervention
- Long Equipment Life
Suitable Waste Streams
- Bio-medical Waste
- Hazardous Waste
- Clinical Waste
- Industrial Waste
- Petrochemical Waste
- Paint Sludge
- Organic Process Waste
- Contaminated Packaging
- Laboratory Waste
- Industrial Sludge
- Mixed Solid & Liquid Waste, etc.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity Range | 250 kg/hr – 5,000 kg/hr |
| Operation | Continuous |
| Waste Feeding | Hydraulic / Automatic feeding |
| Kiln Type | Rotary Cylindrical Kiln |
| Primary Chamber | Rotary Kiln |
| Secondary Chamber | High-Temperature Chamber |
| Automation | PLC & SCADA |
| Air Pollution Control Systems | Integrated APC System |
| Fuel Options | Diesel / LPG / PNG / Natural Gas |
| Ash Handling | Manual / Automatic (Project Specific) |
| Installation | Skid-Mounted / Civil Foundation |
Optional Engineering Features
Based on project requirements, Rotary Kiln Incinerators can be integrated with:
- Waste Heat Recovery System
- High-Temperature Dry Filtration System
- Dry Scrubber System
- Wet Scrubber System
- Activated Carbon Injection
- Lime Dosing System
- Continuous Emission Monitoring System (CEMS)
- Remote PLC Monitoring
- Automatic Ash Handling System
Frequently Asked Questions
Our Rotary Kiln Incinerators are available in capacities ranging from 250 kg/hr to 5,000 kg/hr, with customised configurations available based on project requirements.
The system is designed to process hazardous, biomedical, pharmaceutical, industrial, chemical, petrochemical, sludge, and mixed waste streams.
Yes. The Rotary Kiln Incinerator is specifically engineered for continuous operation, ensuring reliable performance in high-throughput industrial applications.
Yes. Alfa Therm offers complete turnkey services, including engineering, manufacturing, installation, commissioning, operator training, and after-sales support.
Absolutely. Every Rotary Kiln Incinerator is engineered according to the client's waste characteristics, processing capacity, fuel preference, and environmental compliance requirements.
