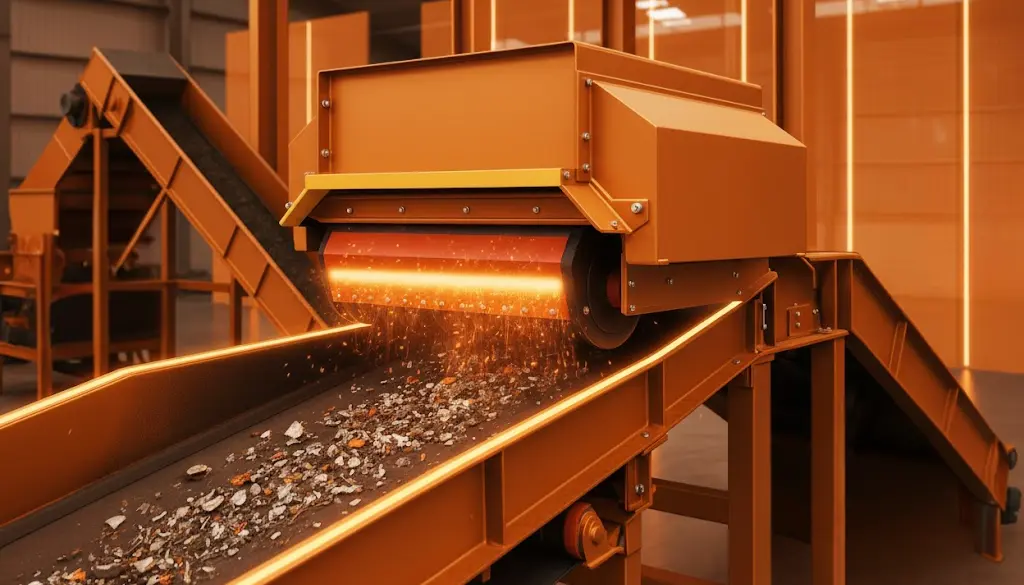

How Eddy Current Separator Works?

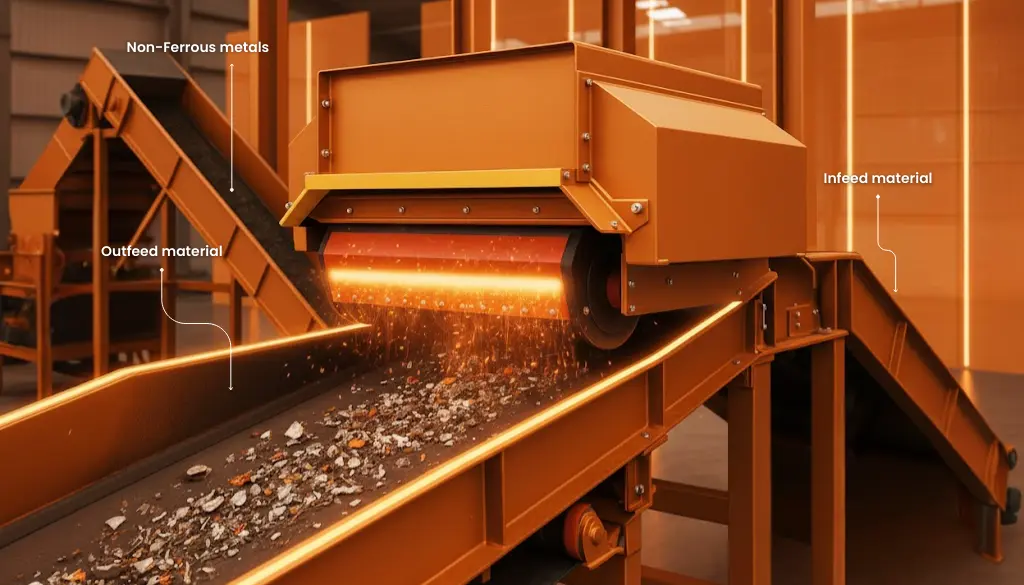

An eddy current separator works on the principle of repulsive magnetic force generated by a high-speed rotating magnetic rotor. As material passes through the separator on a conveyor, non-ferrous metals are exposed to alternating magnetic fields that induce electric currents inside them. These induced currents generate a repulsive force, causing non-ferrous metals to be ejected forward into a separate collection area, while non-metallic materials fall naturally. This process enables fast, continuous, and highly efficient separation.
Key Benefits of Using a Eddy Current Separator
The eddy current separator significantly increases the recovery of valuable non-ferrous metals from waste streams. It enhances the overall recycling rate, improves RDF fuel quality by removing heavy metal contaminants, and generates additional revenue from recovered metals. The system reduces landfill disposal, lowers manual sorting requirements, and ensures consistent, high-efficiency separation with minimal operating cost.
Key Features of Alfa Therm Limited Eddy Current Separator
Our Eddy Current Separators (ECS) are designed for maximum recovery rates and robust, continuous operation, ensuring you extract the highest value from your material streams.
Capacity
1 to 20 tons per hour (Application Dependent)
Rotor Speed
Up to 3,000 RPM (revolutions per minute) standard
Magnetic System
High-grade Neodymium permanent magnets (22 to 38 poles)
Belt Width
400 mm to 1650 mm+ available
Feed Material Size
Ideally pre-shredded; effective for materials up to 50mm, with fine-tuning for particles <5mm
Input Power
3-Phase Electric (Voltage specific to region)
Applications of Alfa Therm Limited Bio Methanation Plants
The Eddy Current Separator is a critical tool for any process requiring the automated removal or recovery of non-ferrous metals.
- Waste Management & Recycling Facilities
- Automotive Scrap Recycling (ASR)
- E-Waste Processing
- Material Purification & Manufacturing
- Plastic & Packaging Waste Processing
Why Choose Alfa Therm Eddy Current Separators?
Alfa Therm Limited delivers high-performance, durable, and precision-engineered eddy current separators designed for efficient non-ferrous metal recovery in demanding industrial environments. With strong engineering capability, robust manufacturing standards, and complete project support from design to after-sales service, Alfa Therm ensures reliable separation performance, long equipment life, and maximum return on investment for waste processing and recycling plants.
